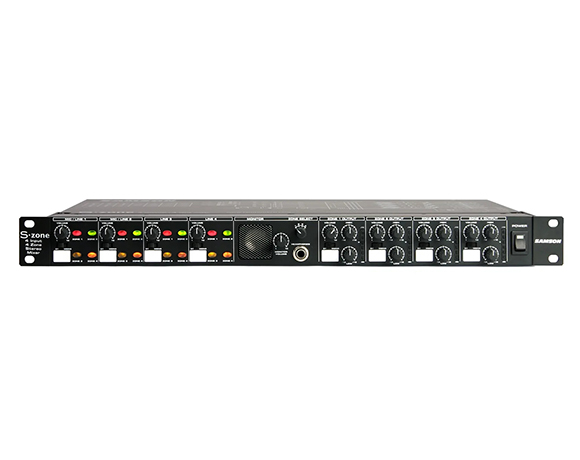

S-Zone

-

4-Input / 4-Zone Stereo Zone Mixer

left right
View Larger

  • 4-channel/4-zone stereo mixer

  • Two Mic/Stereo Line inputs with ducking

  • Two Stereo CD/Line inputs

  • Onboard Speaker and Headphone monitoring

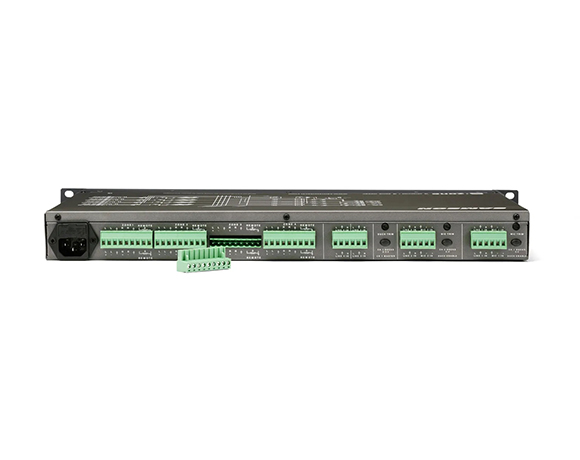

  • Euroblock output connectors

  • Remote Volume Control

Input Impedance Mic600¦¸ XLR balanced

Input Impedance Line22K ¦¸

Max Input Level Mic-14 dBV balanced

Max Input Level Line  +24 dBV

Maximum Gain Mic  60 dB

Maximum Gain Line  26 dB

Output Level+17 dBV max.

Output Impedance Balanced200 Ohms

Output Impedance Unbalanced100 Ohms

Max. S/N ratio96 dB

THD<.02%

CMRR:>52 dB (Mic)

Phantom power+15 VDC

Tone ControlsLOW +/- 15 dB  at 100 Hz / HIGH +/- 15 dB  at 10 kHz

Inputs6 PIN Euroblock

Outputs9 PIN Euroblock

Power Consumption5 Watts

Dimensions19" x 7.5" x 1.75" / 482mm x 190mm x 44mm

Weight5.1lb / 2.31kg
